前言：

学习syscall和免杀绕不开PEB这个部分，我们要对相关结构熟悉，既要会手动解析，也能利用代码解析。

PEB结构：

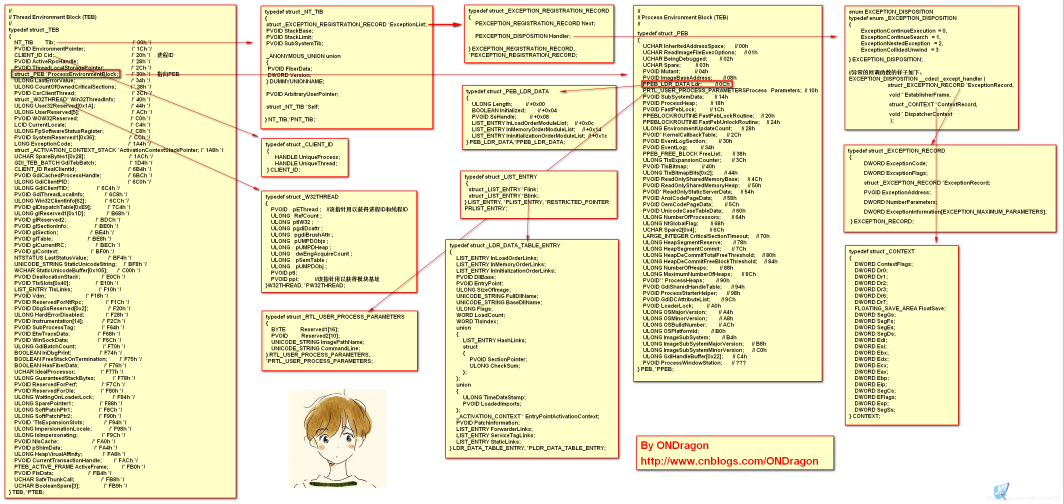

经典大图，永不过时：

注：PEB的结构微软并未完全公开，以上图片可以参考但不一定权威

如果你对偏移比较熟悉的话可以直接用指针+偏移找，不需要特地定义结构体，而且双向链表_LIST_ENTRY这个是公开的。

1
2
3
4
typedef struct _LIST_ENTRY {
   struct _LIST_ENTRY *Flink;
   struct _LIST_ENTRY *Blink;
} LIST_ENTRY, *PLIST_ENTRY, *RESTRICTED_POINTER PRLIST_ENTRY;

自定义PEB的结构

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
typedef struct _PEB {
    BOOLEAN InheritedAddressSpace;
    BOOLEAN ReadImageFileExecOptions;
    BOOLEAN BeingDebugged;
    BOOLEAN Spare;
    HANDLE Mutant;
    PVOID ImageBase;
    PPEB_LDR_DATA LoaderData;		// 0x0c
    PVOID ProcessParameters;
    PVOID SubSystemData;
    PVOID ProcessHeap;
    PVOID FastPebLock;
    PVOID FastPebLockRoutine;
    PVOID FastPebUnlockRoutine;
    ULONG EnvironmentUpdateCount;
    PVOID* KernelCallbackTable;
    PVOID EventLogSection;
    PVOID EventLog;
    PVOID FreeList;
    ULONG TlsExpansionCounter;
    PVOID TlsBitmap;
    ULONG TlsBitmapBits[0x2];
    PVOID ReadOnlySharedMemoryBase;
    PVOID ReadOnlySharedMemoryHeap;
    PVOID* ReadOnlyStaticServerData;
    PVOID AnsiCodePageData;
    PVOID OemCodePageData;
    PVOID UnicodeCaseTableData;
    ULONG NumberOfProcessors;
    ULONG NtGlobalFlag;
    BYTE Spare2[0x4];
    LARGE_INTEGER CriticalSectionTimeout;
    ULONG HeapSegmentReserve;
    ULONG HeapSegmentCommit;
    ULONG HeapDeCommitTotalFreeThreshold;
    ULONG HeapDeCommitFreeBlockThreshold;
    ULONG NumberOfHeaps;
    ULONG MaximumNumberOfHeaps;
    PVOID** ProcessHeaps;
    PVOID GdiSharedHandleTable;
    PVOID ProcessStarterHelper;
    PVOID GdiDCAttributeList;
    PVOID LoaderLock;
    ULONG OSMajorVersion;
    ULONG OSMinorVersion;
    ULONG OSBuildNumber;
    ULONG OSPlatformId;
    ULONG ImageSubSystem;
    ULONG ImageSubSystemMajorVersion;
    ULONG ImageSubSystemMinorVersion;
    ULONG GdiHandleBuffer[0x22];
    ULONG PostProcessInitRoutine;
    ULONG TlsExpansionBitmap;
    BYTE TlsExpansionBitmapBits[0x80];
    ULONG SessionId;
} PEB, * PPEB;

我们主要是需要0x0c(64位为0x18)偏移处的PPEB_LDR_DATA结构

1
2
3
4
5
6
7
8
typedef struct _PEB_LDR_DATA {
    ULONG Length;
    ULONG Initialized;
    PVOID SsHandle;
    LIST_ENTRY InLoadOrderModuleList;
    LIST_ENTRY InMemoryOrderModuleList;
    LIST_ENTRY InInitializationOrderModuleList;
} PEB_LDR_DATA, * PPEB_LDR_DATA;

在PEB_LDR_DATA的0x0c、0x14、0x1c中为三个双向链表LIST_ENTRY
三个链表加载模块分别代表模块加载顺序，模块在内存中的加载顺序以及模块初始化装载的顺序，PEB_LDR_DATA结构类似于一个火车头，三个双向链表LIST_ENTRY意思相同，只是顺序不一样，都指向下一个_LDR_DATA_TABLE_ENTRY结构（也有的定义为_LDR_MODULE 结构）毕竟微软没有公开结构，只要我们所需的偏移一致就行。
_LDR_DATA_TABLE_ENTRY 32位版本：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
struct _LDR_DATA_TABLE_ENTRY
{
    struct _LIST_ENTRY InLoadOrderLinks;                                    //0x0
    struct _LIST_ENTRY InMemoryOrderLinks;                                  //0x8
    struct _LIST_ENTRY InInitializationOrderLinks;                          //0x10
    VOID* DllBase;                                                          //0x18
    VOID* EntryPoint;                                                       //0x1c
    ULONG SizeOfImage;                                                      //0x20
    struct _UNICODE_STRING FullDllName;                                     //0x24
    struct _UNICODE_STRING BaseDllName;                                     //0x2c
    ULONG Flags;                                                            //0x34
    USHORT LoadCount;                                                       //0x38
    USHORT TlsIndex;                                                        //0x3a
    union
    {
        struct _LIST_ENTRY HashLinks;                                       //0x3c
        struct
        {
            VOID* SectionPointer;                                           //0x3c
            ULONG CheckSum;                                                 //0x40
        };
    };
    union
    {
        ULONG TimeDateStamp;                                                //0x44
        VOID* LoadedImports;                                                //0x44
    };
    struct _ACTIVATION_CONTEXT* EntryPointActivationContext;                //0x48
    VOID* PatchInformation;                                                 //0x4c
    struct _LIST_ENTRY ForwarderLinks;                                      //0x50
    struct _LIST_ENTRY ServiceTagLinks;                                     //0x58
    struct _LIST_ENTRY StaticLinks;                                         //0x60
    VOID* ContextInformation;                                               //0x68
    ULONG OriginalBase;                                                     //0x6c
    union _LARGE_INTEGER LoadTime;                                          //0x70
};

_LDR_DATA_TABLE_ENTRY64 64位版本：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
typedef struct _LDR_DATA_TABLE_ENTRY64
{
    struct LIST_ENTRY64 InLoadOrderLinks;                                    //0x0
    struct LIST_ENTRY64 InMemoryOrderLinks;                                  //0x10
    struct LIST_ENTRY64 InInitializationOrderLinks;                          //0x20
    VOID* DllBase;                                                          //0x30
    VOID* EntryPoint;                                                       //0x38
    ULONG SizeOfImage;                                                      //0x40
    struct _UNICODE_STRING FullDllName;                                     //0x48
    struct _UNICODE_STRING BaseDllName;                                     //0x58
    ULONG Flags;                                                            //0x68
    USHORT LoadCount;                                                       //0x6c
    USHORT TlsIndex;                                                        //0x6e
    union
    {
        struct LIST_ENTRY64 HashLinks;                                       //0x70
        struct
        {
            VOID* SectionPointer;                                           //0x70
            ULONG CheckSum;                                                 //0x78
        };
    };
    union
    {
        ULONG TimeDateStamp;                                                //0x80
        VOID* LoadedImports;                                                //0x80
    };
    struct _ACTIVATION_CONTEXT* EntryPointActivationContext;                //0x88
    VOID* PatchInformation;                                                 //0x90
    struct LIST_ENTRY64 ForwarderLinks;                                      //0x98
    struct LIST_ENTRY64 ServiceTagLinks;                                     //0xa8
    struct LIST_ENTRY64 StaticLinks;                                         //0xb8
    VOID* ContextInformation;                                               //0xc8
    ULONGLONG OriginalBase;                                                 //0xd0
    union _LARGE_INTEGER LoadTime;                                          //0xd8
}LDR_DATA_TABLE_ENTRY64, * PLDR_DATA_TABLE_ENTRY64;

_LDR_MODULE 版本：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
typedef struct _LDR_MODULE {
    LIST_ENTRY InLoadOrderModuleList;
    LIST_ENTRY InMemoryOrderModuleList;
    LIST_ENTRY InInitializationOrderModuleList;
    PVOID BaseAddress;
    PVOID EntryPoint;
    ULONG SizeOfImage;
    UNICODE_STRING FullDllName;
    UNICODE_STRING BaseDllName;
    ULONG Flags;
    SHORT LoadCount;
    SHORT TlsIndex;
    LIST_ENTRY HashTableEntry;
    ULONG TimeDateStamp;
} LDR_MODULE, * PLDR_MODULE;

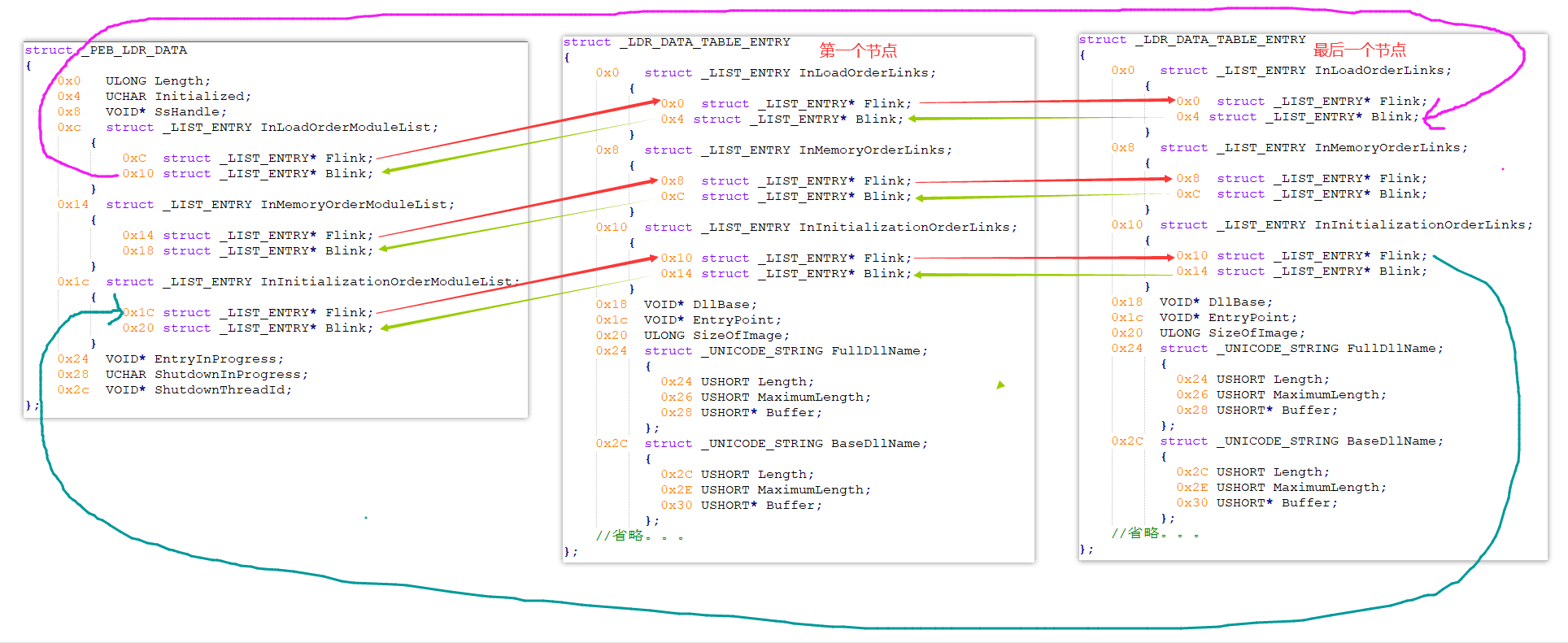

PPEB_LDR_DATA结构是一个入口，类似于火车头，里面_LIST_ENTRY->Flink指向第一个_LDR_DATA_TABLE_ENTRY，然后第一个指向第二个以此类推，最后一个指向第一个，而_LIST_ENTRY->Blink指向的是上一个火车，第二个指向火车头，火车头指向最后一个。

这是广为流传的一张图，大多数文章都会拿它做案例，但其实它有一点点错误（吐槽：这么多人都没发现)，Blink指向的并不是上一个Blink，而是指向上一个LIST_ENTRY的地址，下面进行详细分析。

解析PEB：

我们如何找到PEB的地址？这里有三种方法：

  1. 查看OD等调试器的寄存器窗口，fs段寄存器的后面会接着TEB结构指针。直接在内存窗口跳过去即可
  2. 通过fs的值拆分成段选择子，通过GDT表查找段描述符，得到一个3环的调用门….#*#%$()#….. 很显然我不会，直接放弃。
  3. 第三种是最方便的，32位：fs:[0x18]存储着TEB结构指针，fs:[0x30]存储着PEB结构指针。64位：gs:[0x60]存储着PEB结构指针。

为什么不能通过fs直接过去呢？因为fs存储的是段选择子，不是真正的地址所以需要通过偏移。
接下来尝试手动解析：这里用的是64位exe，工具x64dbg

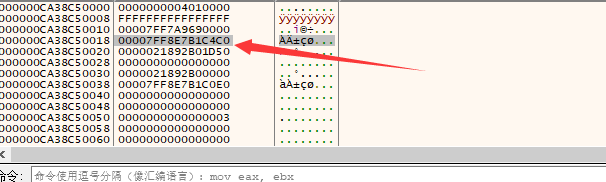

利用gs:[0x60]获取PEB地址，也可以直接用peb()快捷获取，得到地址：000000CA38C50000，ctrl+g跳转，此时就是PEB的结构指针。我们在0x18h(在64位下偏移是18h)处找到PPEB_LDR_DATA地址00007FF8E7B1C4C0

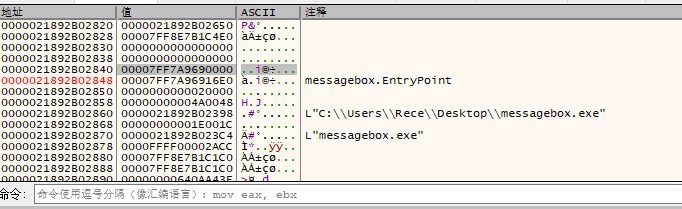

跳转到PPEB_LDR_DATA处,0X20处偏移是我们要找的第一个LDR_DATA_TABLE_ENTRY的InMemoryOrderModuleList地址：0000021892B02820，此时

  • Flink地址：0000021892B02650
  • Blink地址：00007FF8E7B1C4E0
  • EntryPoint：00007FF7A96916E0
  • FullDllName：（0x58-0x60）
  • BaseDllName：(0x68-0x70)

根据Flink跳转至下一个LDR_DATA_TABLE_ENTRY

下一个_LDR_DATA_TABLE_ENTRY结构的InMemoryOrderModuleList处
此时Flink：0000021892B02D70指向下一个InMemoryOrderModuleList地址，Blink：0000021892B02820刚好指向了上一个InMemoryOrderModuleList地址

  • FullDllName：c:\windows\system32\ntdll.dll
  • BaseDllName：ntdll.dll

继续下一跳，Flink：0000021892B02D70，Blink：0000021892B02650刚好指向ntdll.dll的InMemoryOrderModuleList起始地址

我们可以依次遍历下去，找到我们所需要的基址

代码实现：

微软很贴心的提供了两个获取PEB的api

我们也可以不用Windows的api

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
// 64位
.CODE
  GetPeb64 PROC
    mov rax,gs:[60h]
  ret
  GetPeb64 ENDP
 END

//32位
.CODE
    GetPeb32 PROC
    	mov rax, fs:[30h];
    	ret;
    GetPeb32 ENDP
END

// 也可以直接找到ldr地址
.CODE
    GetPebLdr PROC
    	mov rax, gs:[60h];
    	add rax, 18h;
    	mov rax, [rax];
    	ret;
    GetPebLdr ENDP
END

asm.h

1
2
3
#define __ASMCODE_H

extern "C" PVOID64 _cdecl GetPeb();

定义结构体查找导出函数地址：

注：结构体定义太长了没贴上来，对着上面抄就行了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
#include <windows.h>
#include <winternl.h>
#include "global.h"
#include <stdio.h>
int main()
{
	PIMAGE_DOS_HEADER pDos = NULL;
	PIMAGE_FILE_HEADER pFile = NULL;
	PIMAGE_OPTIONAL_HEADER pOptional = NULL;
	PIMAGE_EXPORT_DIRECTORY pExport = NULL;
	PMPEB peb = (PMPEB)__readgsqword(0x60);
	PLDR_DATA_TABLE_ENTRY64 pLdr = NULL;
	PBYTE imageBase = NULL;

	// use PEB to find the base address of ntdll.dll
	pLdr = (PLDR_DATA_TABLE_ENTRY64)((PBYTE)peb->LoaderData->InMemoryOrderModuleList.Flink - 0x10);
	wprintf(L"[*]name:%s\n", pLdr->BaseDllName.Buffer);
	printf("[*]DllBase:%p\n", (PBYTE)pLdr->DllBase);
	while ((_wcsicmp(pLdr->BaseDllName.Buffer, L"ntdll.dll")) != 0)
	{
		pLdr = (PLDR_DATA_TABLE_ENTRY64)((PBYTE)pLdr->InMemoryOrderLinks.Flink - 0x10);
		imageBase = (PBYTE)pLdr->DllBase;
		wprintf(L"[*]name: %s\n",pLdr->BaseDllName.Buffer);
		printf("[*]DllBase: %p\n", imageBase);
	}
	printf("[*]find ntdll.dll address.....\n");

	// find the exported functions of ntdll.dll
	pDos = (PIMAGE_DOS_HEADER)imageBase;
	if (*(PWORD)pDos != 0x5A4D)
	{
		printf("[*]pe parsing failed..");
	}
	printf("\n");
	pOptional = (PIMAGE_OPTIONAL_HEADER)((PBYTE)pDos + pDos->e_lfanew + sizeof(DWORD) + sizeof(IMAGE_FILE_HEADER));
	pExport = (PIMAGE_EXPORT_DIRECTORY)((PBYTE)imageBase + pOptional->DataDirectory[0].VirtualAddress);

	PDWORD pdwAddressOfFunctions = (PDWORD)((PBYTE)(imageBase + pExport->AddressOfFunctions));
	PDWORD pdwAddressOfNames = (PDWORD)((PBYTE)imageBase + pExport->AddressOfNames);
	PWORD pwAddressOfNameOrdinales = (PWORD)((PBYTE)imageBase + pExport->AddressOfNameOrdinals);
	for (WORD cx = 0; cx < pExport->NumberOfNames; cx++)
	{
		PCHAR pczFunctionName = (PCHAR)((PBYTE)imageBase + pdwAddressOfNames[cx]);
		PVOID pFunctionAddress = (PBYTE)imageBase + pdwAddressOfFunctions[pwAddressOfNameOrdinales[cx]];
		printf("[*]Function Name:%s\tFunction Address:%p\n", pczFunctionName, pFunctionAddress);
	}
	return 0;
}

直接利用偏移：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
#include <windows.h>
#include <winternl.h>
#include "getPeb.h";
#include <stdio.h>

// custom VirtualProtect function
typedef BOOL(WINAPI* CustomVirtualProtect)(LPVOID lpAddress, SIZE_T dwSize, DWORD  flNewProtect, PDWORD lpflOldProtect);
CustomVirtualProtect myVirtualProtect;

PVOID GetFunctionAddress(PVOID pBaseAddress, PCHAR pFunctionName)
{
	PIMAGE_DOS_HEADER pDos = NULL;
	PIMAGE_FILE_HEADER pFile = NULL;
	PIMAGE_OPTIONAL_HEADER pOptional = NULL;
	PIMAGE_EXPORT_DIRECTORY pExport = NULL;
	PVOID getFunctionAddress = NULL;

	pDos = (PIMAGE_DOS_HEADER)pBaseAddress;
	if (*(PWORD)pDos != 0x5A4D)
	{
		printf("[*]pe parsing failed..");
	}
	printf("\n");
	pOptional = (PIMAGE_OPTIONAL_HEADER)((PBYTE)pDos + pDos->e_lfanew + sizeof(DWORD) + sizeof(IMAGE_FILE_HEADER));
	pExport = (PIMAGE_EXPORT_DIRECTORY)((PBYTE)pBaseAddress + pOptional->DataDirectory[0].VirtualAddress);

	PDWORD pdwAddressOfFunctions = (PDWORD)((PBYTE)pBaseAddress + pExport->AddressOfFunctions);
	PDWORD pdwAddressOfNames = (PDWORD)((PBYTE)pBaseAddress + pExport->AddressOfNames);
	PWORD pwAddressOfNameOrdinales = (PWORD)((PBYTE)pBaseAddress + pExport->AddressOfNameOrdinals);
	for (WORD cx = 0; cx < pExport->NumberOfNames; cx++)
	{
		PCHAR pczFunctionName = (PCHAR)((PBYTE)pBaseAddress + pdwAddressOfNames[cx]);
		PVOID pFunctionAddress = (PBYTE)pBaseAddress + pdwAddressOfFunctions[pwAddressOfNameOrdinales[cx]];
		if (0 == _strnicmp(pczFunctionName, pFunctionName, strlen(pczFunctionName)))
		{
			printf("[*]Function Name:%s\tFunction Address:%p\n", pczFunctionName, pFunctionAddress);
			getFunctionAddress = pFunctionAddress;
			break;
		}

	}
	return getFunctionAddress;
}

int main()
{
	PVOID64 peb = GetPeb64();
	PVOID64 PEB_LDR_DATA = *(PVOID64**)((PBYTE)peb + 0x18);
	PVOID64 PEB_LDR_TABLE_ENTRY = (PVOID64)((PBYTE)PEB_LDR_DATA + 0x20);
	UNICODE_STRING* fullName = NULL;
	LIST_ENTRY* pListEntry = NULL;
	HMODULE hKernel32 = NULL;
	PVOID apiID = NULL;

	pListEntry = (LIST_ENTRY*)PEB_LDR_TABLE_ENTRY;
	do
	{
		pListEntry = pListEntry->Flink;
		fullName = (UNICODE_STRING*)((PBYTE)pListEntry + 0x48);
		hKernel32 = (HMODULE)(*((PULONG64)((PBYTE)pListEntry + 0x20)));
		wprintf(L"[*]moduleNaame: %s\n", fullName->Buffer);
		wprintf(L"[*]moduleAddress: %p\n", hKernel32);


	} while ((_wcsicmp(fullName->Buffer, L"kernel32.dll")) != 0);
	printf("find address....\n");

	apiID = GetFunctionAddress((PVOID)hKernel32, (PCHAR)"VirtualProtect");
	myVirtualProtect = (CustomVirtualProtect)(DWORD)apiID;

	return 0;
}

注意事项：取值时要注意是指针还是二重指针，数据宽度要注意

参考文章：
